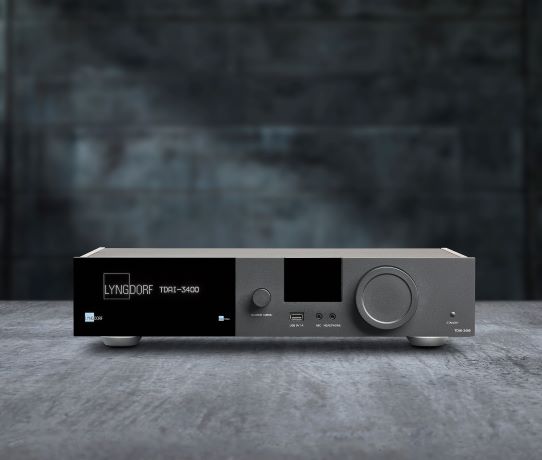

TDAI-3400 Integrated Amplifier and Audio Processor
With extreme audio processing options combined with the most powerful and advanced digital amplifier technology, the TDAI-3400 is the most powerful product from Lyngdorf Audio yet marketed.
HEAR it soon at American Hi-Fi
THE BEST SOUND IN THE OPTIMAL ROOM
Through the web interface you can perform all setup and operations from the menu system, which allows you to tailor your setup and sound, and the digital crossover allows 3 individual output settings.
With Lyngdorf's proprietary RoomPerfectTM room-correction software to eliminate the negative influence of the listening room, the TDAI-3400 delivers a perfect sound without the need for extensive room treatment.
IMPRESSIVE BUILD QUALITY
A salute to modern industrial design, the chassis of the TDAI-3400 is executed in the signature sleek design of Lyngdorf Audio. The TDAI-3400 doesn’t generate much heat, allowing for passive cooling with no need for noise-inducing fans or vents. With the TDAI-3400, you will enjoy the extremely low background noise of the digital signal processing.
CONNECT AUDIO AND VIDEO SOURCES
A variety of inputs and outputs provide plenty of options to connect your audio and video sources as well as your speaker setup.
7 digital inputs including a balanced AES/EBU
USB inputs connects to music stored external
2 analog inputs for simple analog music sources
Optional module with 4 high-end analog inputs
Optional module with 3 HDMI inputs and 1 HDMI output
A BUILT-IN MEDIA PLAYER
The TDAI-3400 accepts all media interfaces and features a built-in media player with the highest playback quality. Through your local network or via the USB connectors, you can access your entire library of music through the DLNA/UPnP enabled player. This media player also connects to streaming services like Roon Ready, Spotify Connect, and Airplay as well as internet radio.
ROON READY
Roon is the most engaging, enjoyable way to browse your music. Being Roon Ready means that Lyngdorf Audio TDAI-3400 transparently discover and connect to Roon, with no network configuration, with bitperfect delivery of audio to your dac.
Together, Roon and Lyngdorf Audio deliver the power flexibility and performance benefits of networked audio, with the easiest setup and highest reliability available.
CONTROL TDAI-3400 WITH AN APP
The Lyngdorf Remote Application automatically discovers the TDAI-3400 connected to your local network, and you will be able to adjust all the basic functions like input selection and volume level from your handheld device.
The built-in media player can be controlled directly, and you can access music files stored on pen drives connected to the Lyngdorf TDAI-3400 as well as search all files stored on your local hard drives. Swiping left and right gives you access to cover art as well as informing you of the signal resolution.
The Lyngdorf Remote Application is available for free download from both IOS and Android.
Technical details
Description:
2-channel integrated amplifier and audio processor
Power handling:2×400 W RMS @ 4Ohm / 2x200W RMS @ 8Ohm
Standard digital inputs (asynchronous):
1 x AES-EBU (≤192kHz/24bit), 2 x Coaxial (≤192kHz/24bit), 3 x Optical (≤96 kHz/24bit), 1 x USB B (≤384kHz/32bit, ≤DSD128, DXD)
Standard analog inputs:
2 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS), 1 x Microphone input for RoomPerfect™ calibration
HDMI module (optional in-/output):
1 x HDMI Output / 3 x HDMI Inputs (PCM ≤192kHz/24bit), ARC (PCM ≤192 kHz/24bit), CEC integration, HDMI 2.0a support, HDCP 2.2, Resolutions requiring 600 MHz clock supported
High-end analog input module:
3 x single ended RCA, 1 x balanced XLR
Standard outputs:
1 x Stereo Analog RCA, 1 x Stereo Analog XLR, 1 x Stereo Digital Coax, 1 x Headphone 3,5mm
Audio specifications:
Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz, THD-N 1w/8ohm 0,04% / THD-N 1w/4ohm 0,04%
Mediaplayer:
Roon Ready, Spotify Connect, DLNA Support (uPnP) Airplay, Local file playback (USB), Internet Radio (vTuner)
Wireless connections:
Bluetooth (4.2 BLE), Wi-Fi (802.11 n/ac)
Trigger (12V):
1 x Input, which can be related to audio inputs, 1 x Output
3.5mm jack / Thresholds approx.: On: 2.4V Off: 1.6V
Control interfaces:
Web-interface, IP Control, 1 x DB9 connector for RS232 control, 1 x RJ45 Ethernet LAN connector, 2 x USB connectors (Type A) , SD card slot (Backup of filters and settings)
Accessories included:
RoomPerfect™ Microphone, Microphone stand, cable & mini-jack connector, Remote control (IR / BLE)
Placement options:
Optional rack mount or freestanding
Dimensions (Wx H x D):
45 x 10.5 x 36 cm (including connectors) / 17.7 x 4.1 x 14.1 inches
Weight:
8.2 kg / 18.1 lb
Finish:
Matte black
|
|
|
|
