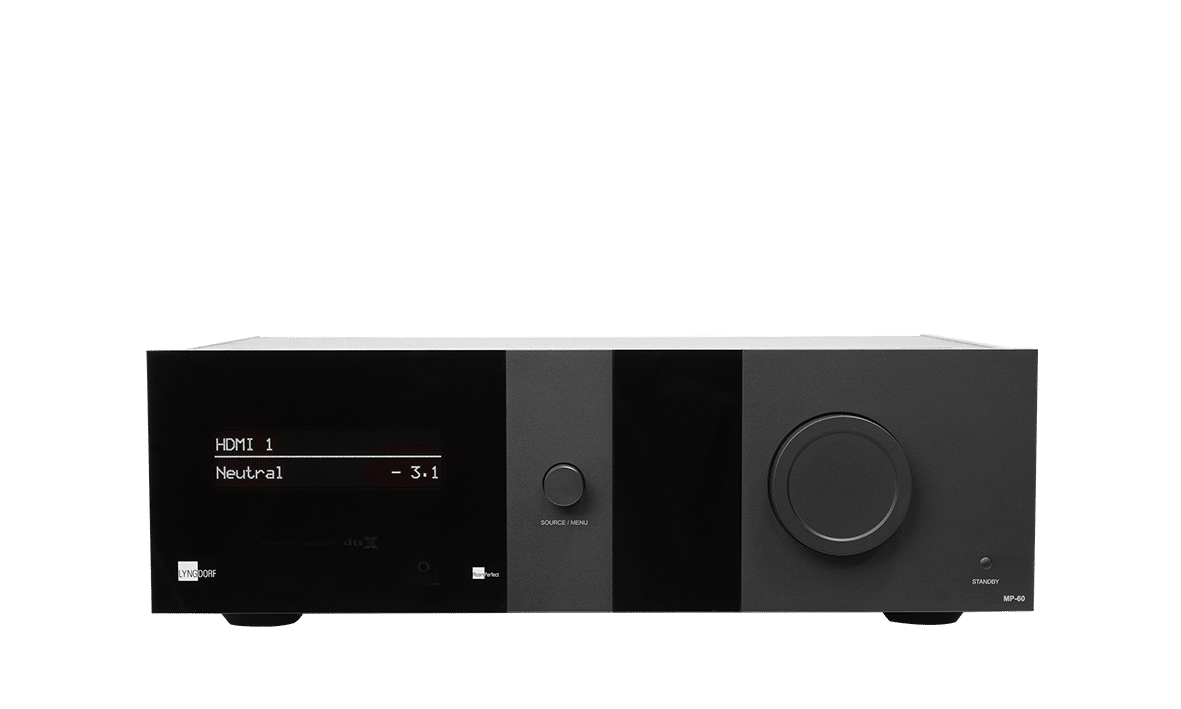

Lyngdorf MP-60 2.1 Surround Processor
Lyngdorf MP-60 2.1 Surround Processor
Now playing at American Hi-Fi
MP-60 2.1 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing.
Specifications
Decoding: 16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels),
all legacy codecs
Post processing options:
Dolby Surround, AURO-MATIC®, DTS Neural:X
Audio inputs:
5 x HDMI (1 x HDMI eARC) ≤192kHz/24bit, 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™
Audio outputs:
16 x XLR analog outputs (8 Vrms max.), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit)
Audio specifications:
Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
EQ: RoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
Media player: Internet radio (vTuner, airable), AirPlay 2, Spotify Connect, Tidal Connect with Dolby Atmos Music, Roon Ready, DLNA Support of FAT32 based media storage (uPnP/see DLNA formats)
Video inputs: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support. accepts HDR, Dolby VisionTM and HLG
Video outputs: 2 x HDMI (HDCP 2.3)
Video scaling: Upscaling of all video to 4K ultra high definition, no downscaling of 4K video
Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)
Accessories included: RoomPerfect microphone, Microphone stand, Microphone cable, RF remote control
Optional module: 16 channel DCI-compliant digital AES/EBU input for movie servers (supports up to 32bit/192kHz), 16 channel digital AES/EBU output module (always 24bit, 48kHz or 96kHz Selectable), 16 channel AES67 digital input/output module (supports up to 32bit/192kHz input, output is always 24bit/48kHz)
Remote control: Infrared/RF
Standby power consumption: < 0.5W
Heat dissipation value: 340 BTU
Placement options: Rack mount (4RU) or freestanding
Dimensions (H x W x D): 14.7 x 45.0 x 37.0 cm, 5.8 x 17.7 x 14.6 in
Weight: 9 kg / 19 lbs
|
|
|
|
