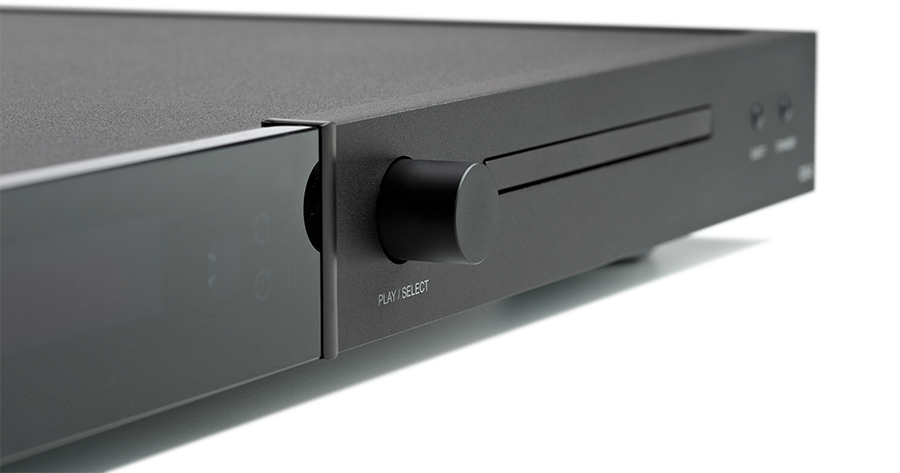

Lyngdorf CD-2 CD Player

The Lyngdorf CD-2 is designed for audio only, and for this reason, using a pure audio drive is both simpler and better. All multi-format drives are based on video designs and clocks, and the audio output is then re-sampled (uncontrolled) to audio output clocks. Many choose to optimize the clock on the drive itself, but no matter what you do, ground potentials are difficult to control and the engine control board is noise-inducing.

The Lyngdorf Audio philosophy is to get the audio signal as clean as possible and to do the optimization based on the Lyngdorf Audio precision clock system. Based on previous work with CD players and fully digital amplifiers, we know the doís and doníts of clock systems. For the CD-2, we have taken the clock from the Millennium Mk IV and implemented it into the CD-2. The key is low phase noise in the audio band.

When music is being mastered, the level is often very high; upon analysis you will often find several consecutive maximum samples, indicating something has been clipped away from the original signal. Audio that exceeds 0 dBFS (decibels relative to full scale) will sound very compressed because the headroom is nonexistent. Sadly, this harsh sound is often related to digitally stored music, as compared to the sound of vinyl. In the CD-2 we reduce the gain with 3 dB; thus, you will enjoy the full dynamic range and a more distortion-free sound.

The D/A converter section is used to drive a high-quality, single ended, and balanced output stage. The D/A converter is built around the Wolfson WM8740 chip. This, in combination with our balanced design and very fine audiophile op-amps, results in outstanding sonic qualities.

Resampling the output of the CD drive to a low-noise clock suppresses the level of jitter artifacts in the output signal to an absolute minimum. Our state-of-the-art sample rate converters, using special low-noise design techniques, enable the CD-2 to upsample the digital output of the audio drive to a selectable output rate. A major advantage of this is that you can adjust the output for the optimum operating point of a D/A converter. The digital output can deliver 24-bit resolution at a sample rate up to 192 kHz. The analog output section is upsampled in a parallel process to 96 kHz.
